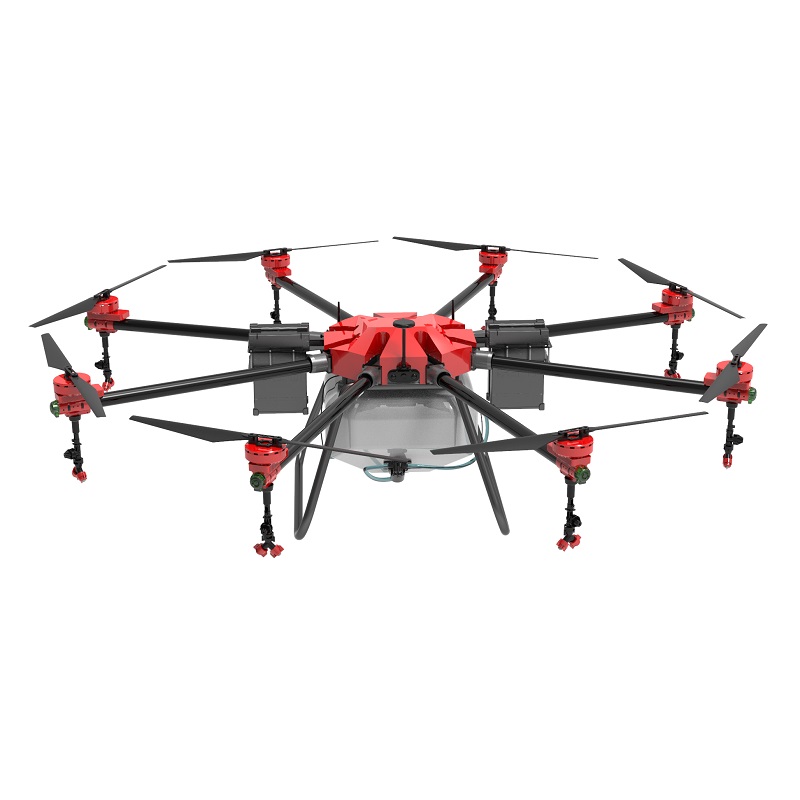

BROUAV D30L-8
The BROUAV D30L-8 is suitable for pesticide spraying in farmland. This drone also has a line feed function when spraying pesticides. It can also complete automatic spraying of an area by monitoring the surroundings, this greatly improves the work efficiency. After refilling the D30L-8, it can return to the breakpoint to continue the spraying operation, which will avoid repeated spraying. The use of small agricultural drones in large-scale farmland can improve the ability to control pests and diseases in a timely manner.
Functions:
1. Automatic line-feeding spraying (cycle spraying);
2. Automatic flight spraying at point AB (Plant protection aircraft can automatically fly once and record automatically after spraying);
3. The plot is planned to be sprayed autonomously (the area and terrain of the plot selected by the ground station is determined, and the aircraft can spray spray autonomously);
4. One-click recording of breakpoint (after spraying pesticides, spraying of pesticides will be recorded automatically and then return to take-off point to change sprays);
5. One-click to return to the breakpoint (after spraying pesticides, the program will automatically record the breakpoints and return to the take-off point to change or fill the spray tank. After changing or filling the tank, the drone will automatically return to the breakpoint. If the drone is not at the right place it will not spray, which will avoid overlap or double spraying);
6. Low-voltage automatic return home (automatically record the power-off point during the spraying process and return to the take-off point to replace the battery during the spraying process. After the battery is replaced, the take-off point will automatically return to the breakpoint. The aircraft will not spray if it has not arrived, which can avoid repeated spraying);
7. Attitude operation mode, GPS operation mode (if you have to interupt the flight, the aircraft can automatically return to the take-off point);
8. Radar wave anti-terrain height setting operation (set the spraying height for the crop, the drone can automatically adjust the height of the crops according to different terrain changes);
9. Automatic obstacle avoidance function (the aircraft can automatically avoid obstacles encountered during automatic operation).
Model D30L-8
Features:
1. The BROUAV D30L adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety protection for long-term operation;
2. This spraying drone has a built-in GPS and compass module, which has a fixed altitude and fixed point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The spraying operation height limit and flight speed limit can be set. The high-pressure spraying system has good atomization effect. Under the downdraft of the aircraft, the spray mist has strong canopy penetration. The particles of the spray mist can reach the stem and crops.
4. Modular design of functional components, easy maintenance and upgrade.
5. Smart plug-in battery
6. Add radar air shock absorption
7. Using high-pressure brushless water pump, the ESC is fully waterproof. At the same time, the pump increases air shock absorption
8. The whole machine is optimized and the circuit is hidden.
9. The folding part is 7075 aviation aluminum (high grade).
10. Dedicated 30L spray tank, also available is fertilizer or granular system. There is no longer a need to replace barrels with liquid pesticides and solid particulate fertilizers.
