DJI Zenmuse Xt Thermal
The DJI Zenmuse XT Thermal FLIR camera combines DJI’s leadership in aerial platforms and FLIR’s first-class thermal-imaging technology. This expands the uses of aerial systems to provide different types of sensory data essential for firefighting, agriculture, inspection and several other industrial-use cases.

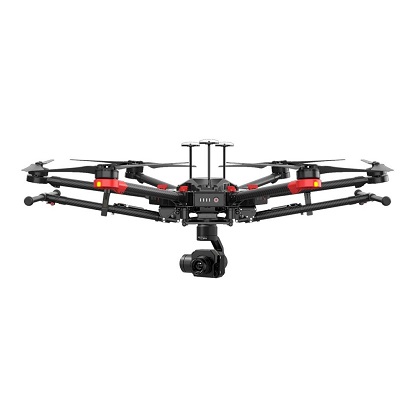

The Zenmuse XT will seamlessly integrate a top-quality FLIR thermal-imager with DJI’s signature gimbal stabilization and Lightbridge video-transmission technology. Using the same gimbal mount as DJI’s Zenmuse X3, X5 and X5R cameras for film making, the Zenmuse XT is fully compatible with the DJI Inspire 1, Matrice 100, Matrice 200 and Matrice 600 aerial platforms.
*Thermal image courtesy of FLIR
FLIR’s market-leading thermal camera can generate images up to a resolution of 640×512
Thermal imaging from the air has never been as easy as it is with the DJI Zenmuse XT FLIR. By combining DJI’s unrivaled expertise in gimbal technology and image transmission with the industry leading thermal imaging technology of FLIR, the Zenmuse XT is the ultimate solution for rapid and reliable aerial thermal imaging. Capture faster, with pinpoint precision, over large areas, then save them for analysis and reporting.
INTEGRATED THERMAL CAMERA
The camera on the DJI Zenmuse XT is developed by FLIR. It provides high-sensitivity (50mK) thermal imaging at 640/30 fps or 336/30 fps depending on the camera model. This sensitivity provides accurate temperature measurements ideal for analytics and telemetry. Both cameras are available with four lens options to meet different business needs. Stabilized and controlled by a custom DJI gimbal, it provides smooth, clear imagery and 360 degrees of seamless rotational movement.
| THERMAL IMAGER | UNCOOLED VOX MICROBOLOMETER | |
|---|---|---|
| FPA/Digital Video Display Formats | 640 × 512 | 336 × 256 |
| Pixel Pitch | 17 μm | |
| Full Frame Rates | 30 Hz (NTSC) 25 Hz (PAL) |
|
| Exportable Frame Rates | <9Hz * | |
| Sensitivity (NEdT) | <50 mK at f/1.0 | |
| Photo Formats | JPEG (8 bit) / TIFF (14 bit) | |
| Video Format | MP4 | |
| Digital Zoom | 2x, 4x, 8x | 2x, 4x |
| Lens Options | 7.5mm, 9mm, 13mm, 19mm | 6.8mm, 9mm, 13mm, 19mm |
Contact us for advice on the best system to suit your application.
Add a FLIR camera to a Matrice 100
A video of the DJI Zenmuse XT FLIR camera
